Selecting a Response to Commands from the Operation Panel Using IJ Scan Utility

Note

• The screens for specifying the responses when performing Auto Scan from the operation panel are used as examples in the following descriptions.

1. Start IJ Scan Utility.

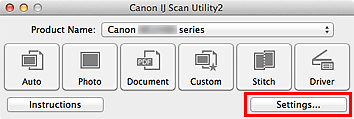

2. Click Settings....



   The Settings dialog appears.

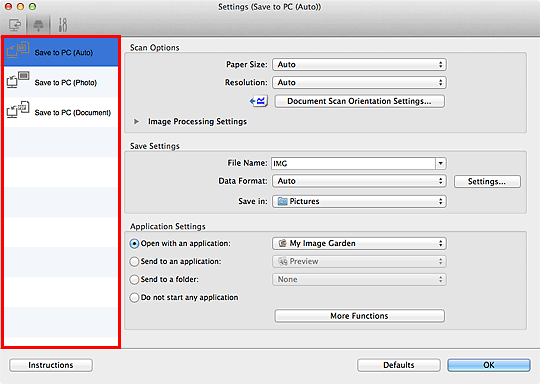

3. Select a scan mode on the (Scanning from the Operation Panel) tab.



   Note

   • Refer to the following for details.

     • Settings (Save to PC (Auto)) Dialog
     • Settings (Save to PC (Photo)) Dialog
     • Settings (Save to PC (Document)) Dialog

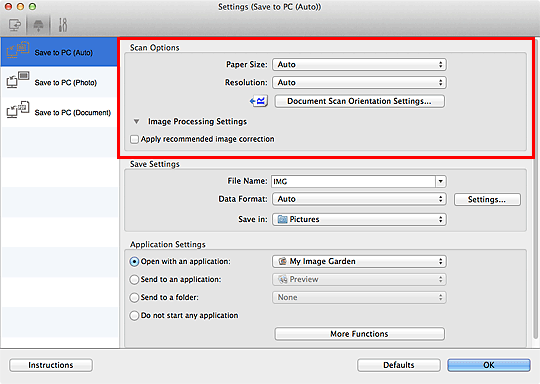

4. Specify image corrections in Scan Options.

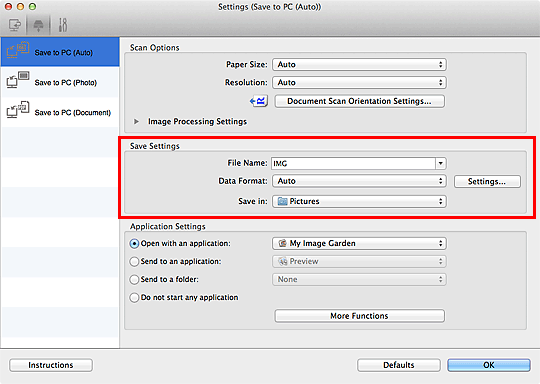

5. Specify the file name and other settings in Save Settings.

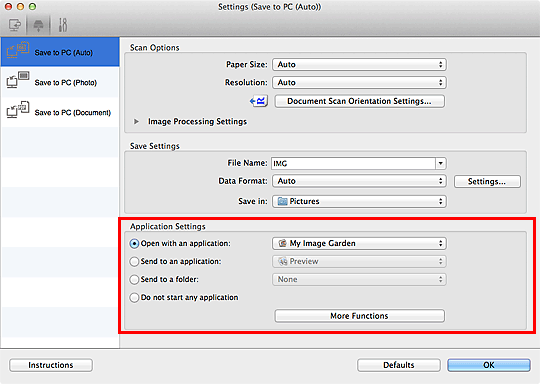

6. Select the application you want to start after scanning in Application Settings.



7. Click OK.

   The responses will be executed according to the specified settings when you start scanning from the operation panel.
